OLT - High speed good quality wet type wire drawing machine for binding wire Water Tank Drawing Machine

Name: OLT - High speed good quality wet type wire drawing machine for binding wire Water Tank Drawing Machine
Uploaded: 2022-04-29T23:40:17+08:00
Duration: 10 s

Our High speed good quality wet type wire drawing machine for binding wire has the high-level characteristics of all raw materials. Therefore, it has the multi-functional features which largely decide its applications. At present, the wire drawing machine ,galvanized wire production line,chain link fence machine,wire mesh making machine ,nail making machine ,gabion box machine，welded wire mesh machine ，razor barbed wire machine,barbed wire machine etc. has applications in a wide range of Other Metal & Metallurgy Machinery fields.

SEND INQUIRY NOW

Model Number:: OLT-300 WWD

shipping:: Support Sea freight · Land freight

SEND INQUIRY NOW

Products Details

Hebei oulite import & export trading Co.,Ltd is capable of providing a quality range of High speed good quality wet type wire drawing machine for binding wire. High speed good quality wet type wire drawing machine for binding wire performs powerful function and has strong advantages. Hebei oulite import & export trading Co.,Ltd has successfully expanded its business in market in the past few years and it is very possible for the company to have a better development in the future.

Place of Origin:	Hebei, China	Brand Name:	OLT
Condition:	New	Machine Type:	wire drawing machine, Full automatic
Weight (KG):	2500	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty of core components:	1 Year	Core Components:	PLC, Motor
Warranty:	1 Year	Key Selling Points:	Sustainable
Applicable Industries:	Building Material Shops	Showroom Location:	None
Name:	Water tank wire drawing machine	Usage:	drawing wire
Wire diameter:	2.0-0.7mm	Power:	18kw
Capacity:	60kg/h--0.7mm	Voltage:	380V 50Hz 3Phase/Customized
Color:	Green, Blue, etc	Production:	245m/min

Product Description

Water tank wire drawing machine

The water tank series wire drawing machine is in wet type to draw low,mild and high carbon steel wires,as well as non-ferrous
materials,with swift speed ,high quality and good reputation.
It is the most ideal equipment for steel wires and ropes,galvanized wires,and elctric wires manufacturer.

Machine details

Water Tank Wire Drawing Machine Paratemter
Type	Max.Inlet Diameter(mm)	Min.Outlet Diameter(mm)	Drawing Passage	Motor Power(kw)	Production Speed(m/min)	Production Capacity(T/24h)
WWM-1	4.0-3.5	1.8-1.4	8-10	37+1.5	150-200	5-8
WWM-2	2.0	0.5-1.0	10-12	15+2.2	280-350	1-1.5

Detailed machine

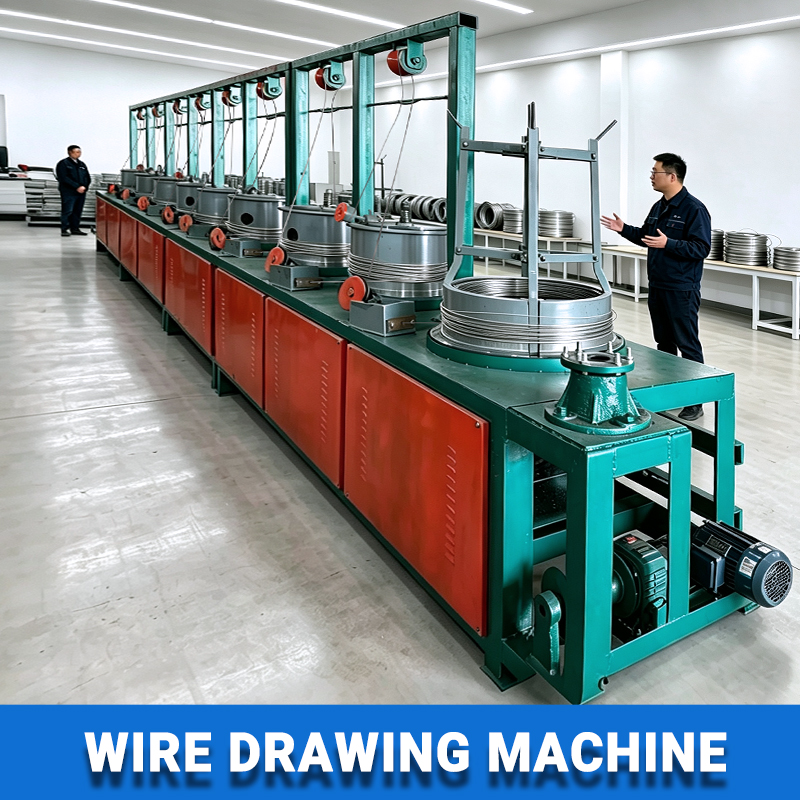

Pulley type wire drawing machine

The equipment is suitable for processing of 8mm-6mm wire rod and various kinds of metal wire, especially suitable for processing
low carbon iron wire, galvanized iron wire, copper wire, aluminum wire, stainless steel wire, rubber hose steel wire, spring wire,
welding wire, etc. Use customer bold type reducer, thickening box body, increase the bearing.

Pulley Type wire drawing machine
Max inlet wire diameter (mm)	min inlet wire diameter (mm)	Drawing Passage	Motor(KW)	Production Speed (m/min)	Production Capacity (T/24hours)
6.5	3.8	4	15*4+1.5	100-120	12-15(3.8mm)
4.0	2.0	5	7.5*5+1.5	150-200	5-6(2.0mm)

Straight Line Wire Drawing Machine

The straight line wire drawing machine is a high-end wire drawing
machine developed and produced by the digestion and absorption technology. Main features: The drum has a narrow-slot
water-cooling, the drawing die adopts direct water cooling, and the cooling effect is good. It adopts first-class strong narrow
V-belt and standard hard-toothed gearbox transmission, with high transmission efficiency and low noise. It adopts fully enclosed
protection system, good safety, tension tuning, smooth drawing, and several inverters with AC frequency conversion (or DC).
Programmable control system), screen display, high degree of automation, easy operation, excellent quality of drawn products.

Specification					LZ-560
Drum diameter					560mm
Max inlet wire tensile strength					1300Mpa
Drawing numbers					2-13
Inlet wire diameter max					6.5mm
Outlet wire diameter min					1.35mm
Max wire speed					15m/s
Motor					160-220KW
