OLT Machine - provides OEM & ODM services for all kinds of wire mesh machine.
Full automatic nail wire making machine direct from manufacturer is carefully researched and developed by the R&D team, and the positioning is very clear, which is to solve the pain points of customers and meet the needs of customers.Therefore,the measured data indicates that the product meets the market requirements.
It is the utilization of technology that contributes to the high-efficiency manufacturing of the product. In the field(s) of Other Metal & Metallurgy Machinery , it is highly accepted and widely used. The research and development team is the core competence to Full automatic nail wire making machine direct from manufacturer. It enables us to become a leader in the Pulley Wire Drawing Machine.Oulite Wire Mesh Products Co.,Ltd adhere to the corporate spirit of 'pragmatism & innovation' and aim to create benefits for our stakeholders. Driven by the fierce competition in the market, Oulite Wire Mesh Products Co.,Ltd hold a firm belief that we must focus on R&D and develop new technologies to adapt to the market trends.
| Place of Origin: | China | Brand Name: | OLT |
| Condition: | New | Machine Type: | wire drawing machine, Full automatic |
| Weight (KG): | 2500 | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2026 |
| Warranty of core components: | 1 Year | Core Components: | PLC, Motor |
| Warranty: | 1 Year, One year | Key Selling Points: | Sustainable |
| Applicable Industries: | Building Material Shops | Showroom Location: | None |
| Name: | pulley wire drawing machine | Usage: | drawing wire |
| Wire diameter: | 6.5-2.0mm | Power: | 18kw |
| Voltage: | 380V 50Hz 3Phase/Customized | Color: | Green, Blue, etc |

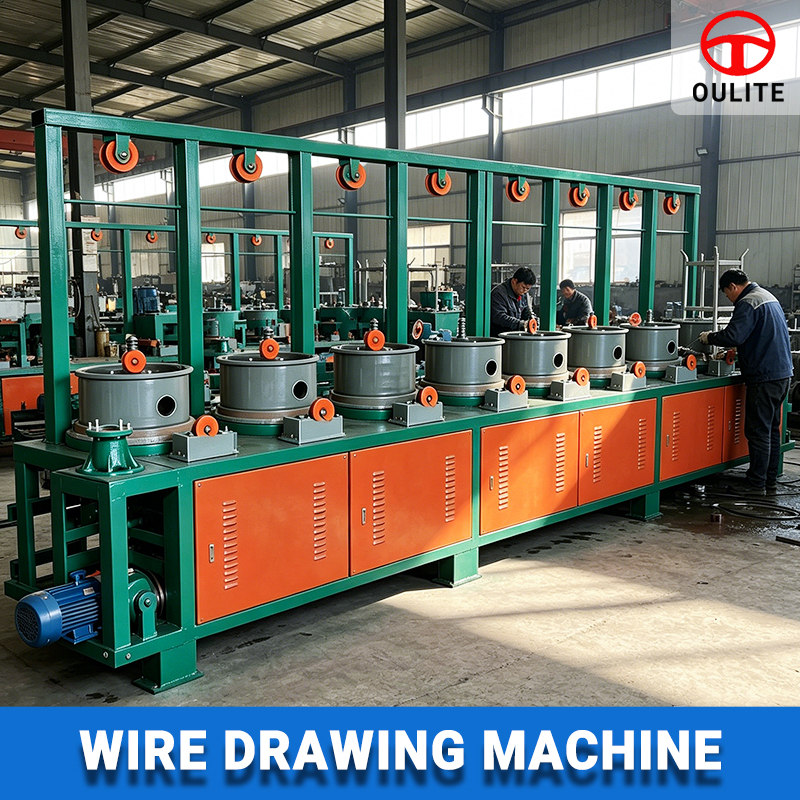

Pulley Type wire drawing machine | ||||||||||
Max inlet wire diameter (mm) | min inlet wire diameter (mm) | Drawing Passage | Motor(KW) | Production Speed (m/min) | Production Capacity (T/24hours) | |||||
6.5 | 3.8 | 4 | 15*4+1.5 | 100-120 | 12-15(3.8mm) | |||||
4.0 | 2.0 | 5 | 7.5*5+1.5 | 150-200 | 5-6(2.0mm) | |||||
Specification | LZ-560 | ||||||
Drum diameter | 560mm | ||||||
Max inlet wire tensile strength | 1300Mpa | ||||||
Drawing numbers | 2-13 | ||||||
Inlet wire diameter max | 6.5mm | ||||||
Outlet wire diameter min | 1.35mm | ||||||
Max wire speed | 15m/s | ||||||
Motor | 160-220KW | ||||||

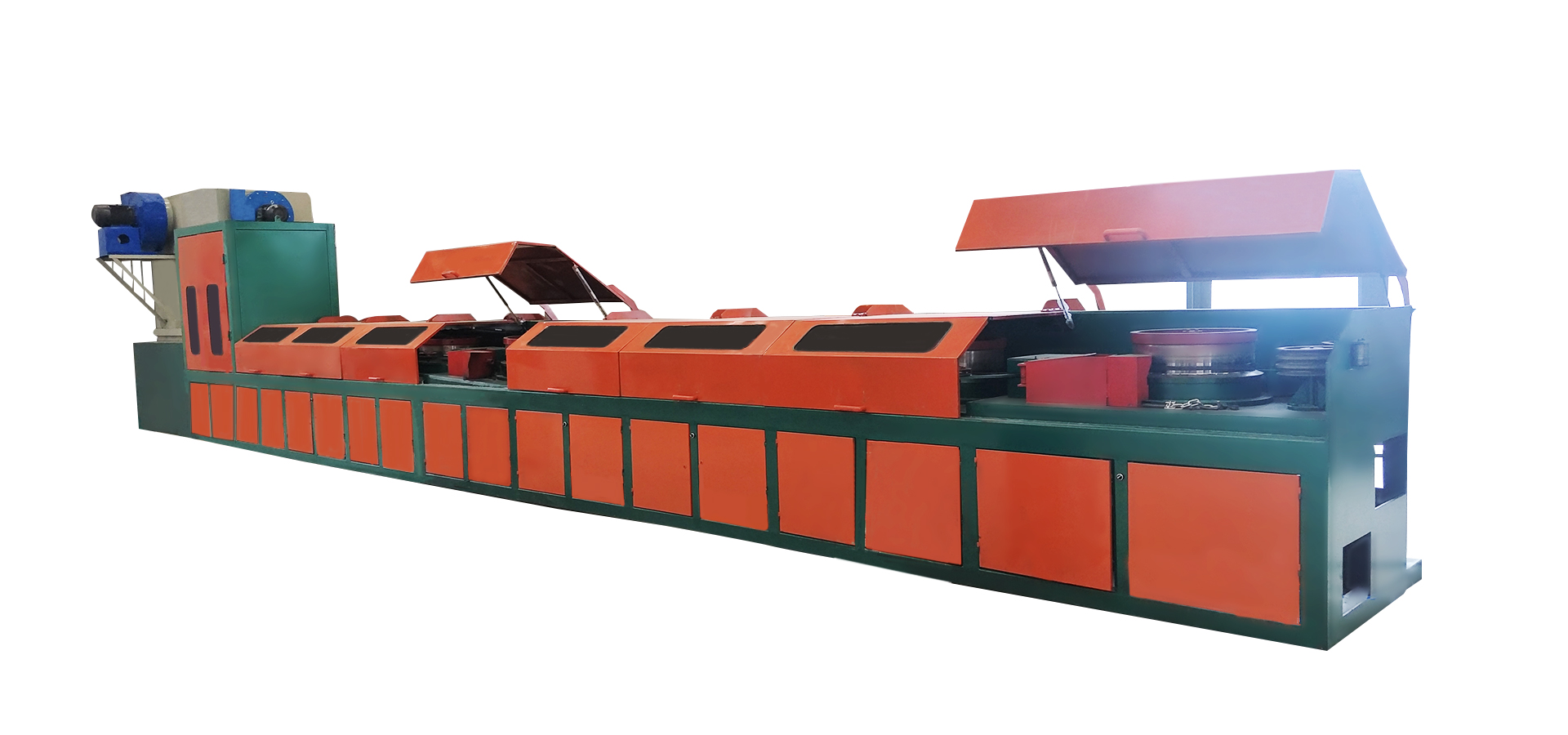

Water Tank Wire Drawing Machine Paratemter | ||||||||||||
Type | Max.Inlet Diameter(mm) | Min.Outlet Diameter(mm) | Drawing Passage | Motor Power(kw) | Production Speed(m/min) | Production Capacity(T/24h) | ||||||
WWM-1 | 4.0-3.5 | 1.8-1.4 | 8-10 | 37+1.5 | 150-200 | 5-8 | ||||||
WWM-2 | 2.0 | 0.5-1.0 | 10-12 | 15+2.2 | 280-350 | 1-1.5 | ||||||
Professional customer service keeps online communication 24 hours a day.
Products are sold to India, Pakistan, South Africa, Indonesia, USA, Uzbekistan, Tajikistan, Nepal, Egypt, Nigeria, Kenya, Tanzania and other countries
Our company(OLT Machine) is an enterprise specialized in Research, design, manufacturing, sales and service of wire mesh machinery and equipment.
