OLT Machine - provides OEM & ODM services for all kinds of wire mesh machine.
To a large extent,the Wire Drawing Machines's appearance, features, packages, etc. can be the important factors that attract customers. In the process of development of wire drawing machine ,galvanized wire production line,chain link fence machine,wire mesh making machine ,nail making machine ,gabion box machine，welded wire mesh machine ，razor barbed wire machine,barbed wire machine etc., our designers have been following the latest trend and analyzing customers' tastes, thereby, making the wire drawing machine ,galvanized wire production line,chain link fence machine,wire mesh making machine ,nail making machine ,gabion box machine，welded wire mesh machine ，razor barbed wire machine,barbed wire machine etc. unique in its structure and design style. As for its features, we try to make it outstanding by adopting high-level raw materials.
Our professional engineers have expertise in using technologies. It has a wide scope of range and is widely seen in the field(s) of Wire Drawing Machines. The long-term maintenance of strong market competitiveness is inseparable from the emphasis on talents and technology. To meet various needs of customers, Oulite Wire Mesh Products Co.,Ltd supports customized Hot sale continuously drum pulley wheel wire drawing machine.
| Condition: | New | Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2025 |
| Warranty of core components: | 1 Year | Core Components: | Motor |
| Place of Origin: | China | Brand Name: | OLT |
| Weight: | 2000 | Warranty: | 1 Year, One year |
| Key Selling Points: | High Productivity | Applicable Industries: | Building Material Shops, Construction works |
| Showroom Location: | None | After-sales Service Provided: | Online support |
| After Warranty Service: | Field maintenance and repair service | Local Service Location: | None |
| Name: | pulley wire drawing machine | Usage: | drawing wire |
| Machine Type: | Full automatic | Wire diameter: | 6.5-2.0mm |
| Power: | 18kw | Voltage: | 380V 50Hz 3Phase Customized |

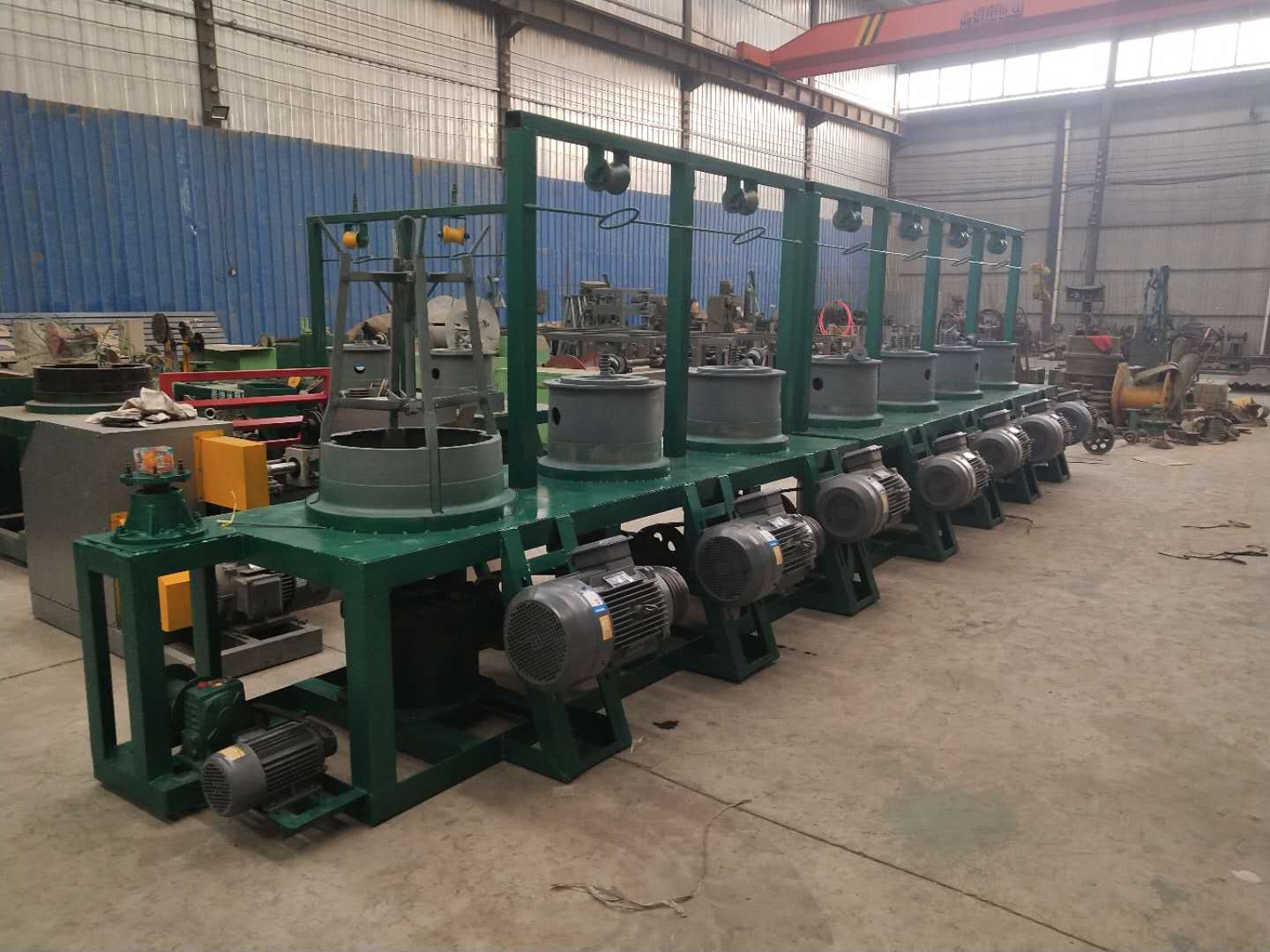

Pulley Type wire drawing machine | ||||||||||
Max inlet wire diameter (mm) | min inlet wire diameter (mm) | Drawing Passage | Motor(KW) | Production Speed (m/min) | Production Capacity (T/24hours) | |||||
6.5 | 3.8 | 4 | 15*4+1.5 | 100-120 | 12-15(3.8mm) | |||||
4.0 | 2.0 | 5 | 7.5*5+1.5 | 150-200 | 5-6(2.0mm) | |||||
Specification | LZ-560 | ||||||
Drum diameter | 560mm | ||||||
Max inlet wire tensile strength | 1300Mpa | ||||||
Drawing numbers | 2-13 | ||||||
Inlet wire diameter max | 6.5mm | ||||||
Outlet wire diameter min | 1.35mm | ||||||
Max wire speed | 15m/s | ||||||
Motor | 160-220KW | ||||||

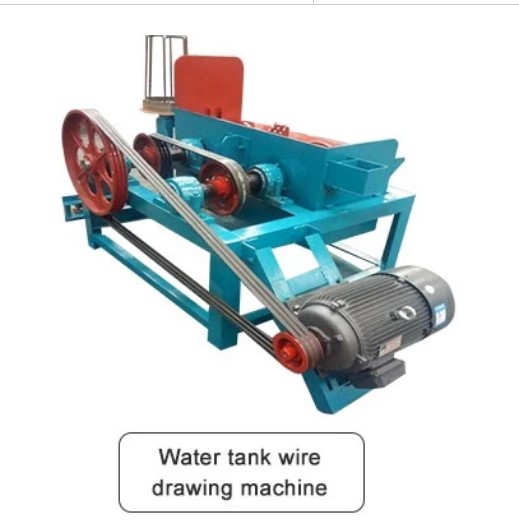

Water Tank Wire Drawing Machine Paratemter | ||||||||||||
Type | Max.Inlet Diameter(mm) | Min.Outlet Diameter(mm) | Drawing Passage | Motor Power(kw) | Production Speed(m/min) | Production Capacity(T/24h) | ||||||
WWM-1 | 4.0-3.5 | 1.8-1.4 | 8-10 | 37+1.5 | 150-200 | 5-8 | ||||||
WWM-2 | 2.0 | 0.5-1.0 | 10-12 | 15+2.2 | 280-350 | 1-1.5 | ||||||
Professional customer service keeps online communication 24 hours a day.
Products are sold to India, Pakistan, South Africa, Indonesia, USA, Uzbekistan, Tajikistan, Nepal, Egypt, Nigeria, Kenya, Tanzania and other countries
Our company(OLT Machine) is an enterprise specialized in Research, design, manufacturing, sales and service of wire mesh machinery and equipment.
